A Decade of development.
Years of refinement steeping 4 models through time, now Abyss’s latest masterpiece Diana DZ.
Exotic Abalone inlays, precision machined aluminum with a premium ceramic polymer finish and audiophile grade sound second to none.
Diana DZ is Thin, lightweight, comfortable fit with a huge soundstage, The highest resolution in a compact package.
Comfort, resolution, luxury. Diana DZ is on the highest level of headphone technology and design.
Comfort -

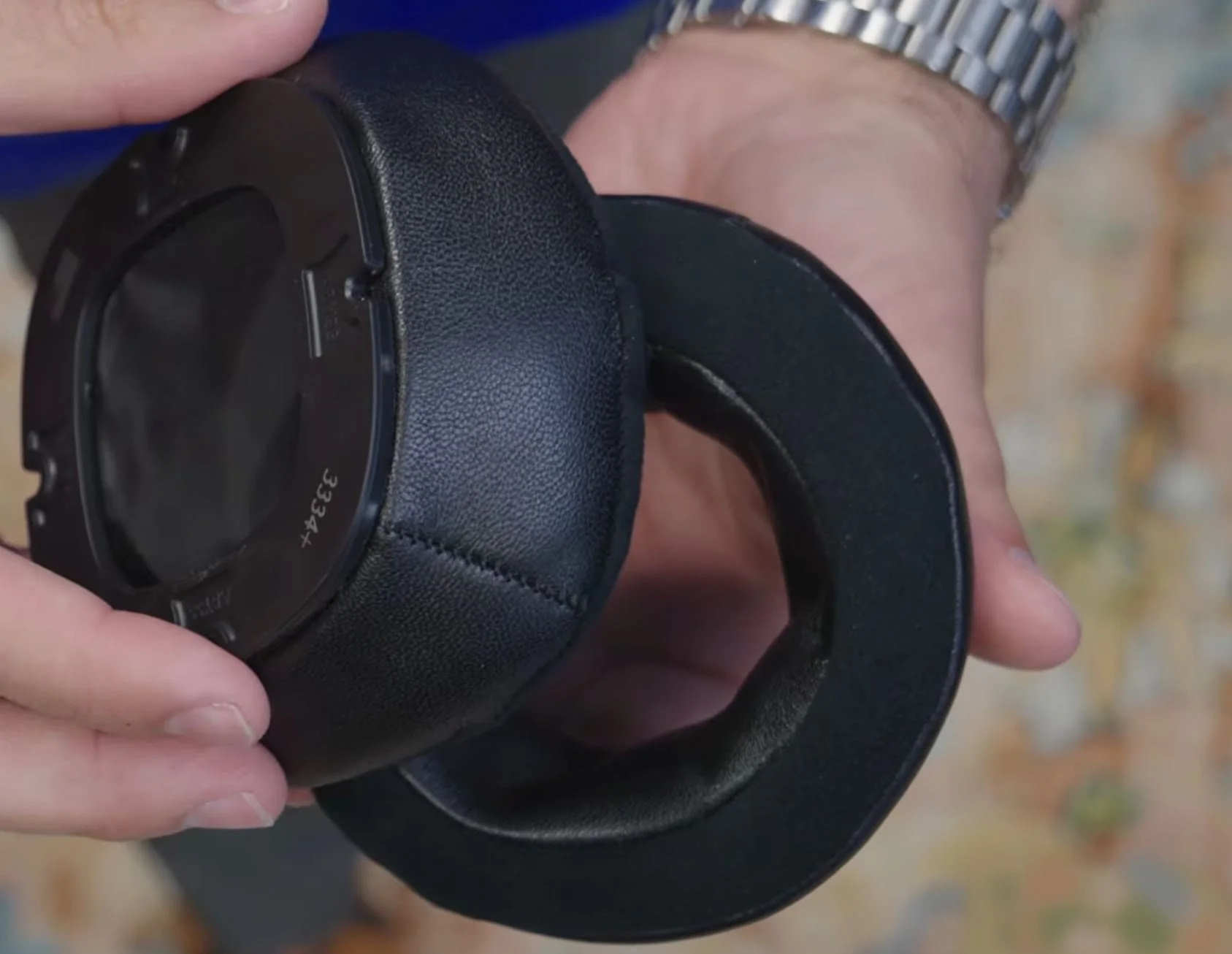

Hybrid Ear Pads
The ear pads of the TC had a great design. Despite sheepskin being the premium material for the application, many just prefer suede for comfort. So here we are; Abyss’s first fully hybrid pad design. The sonic benefits of leather, with the comfort benefits of suede.

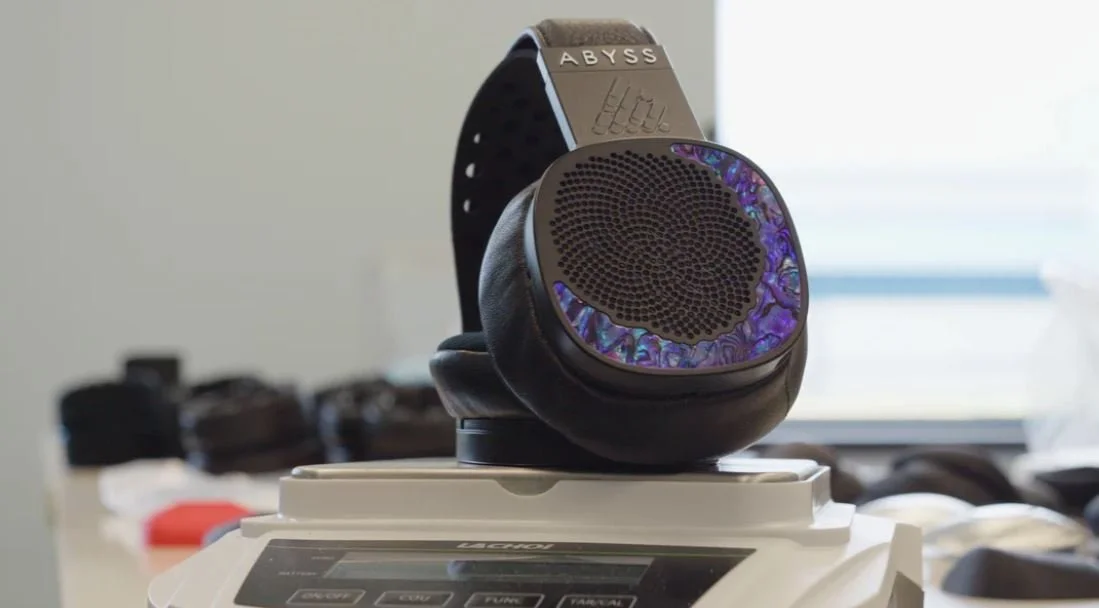

Weight
Not that the TC were heavy, but Abyss knew they could do more. Their lightest headphone ever, with the DZ They're pushing the limits of CNCed aluminum can do. All with zero compromise to structural stability. Proof all the way down to how it sounds.
Luxury looks -

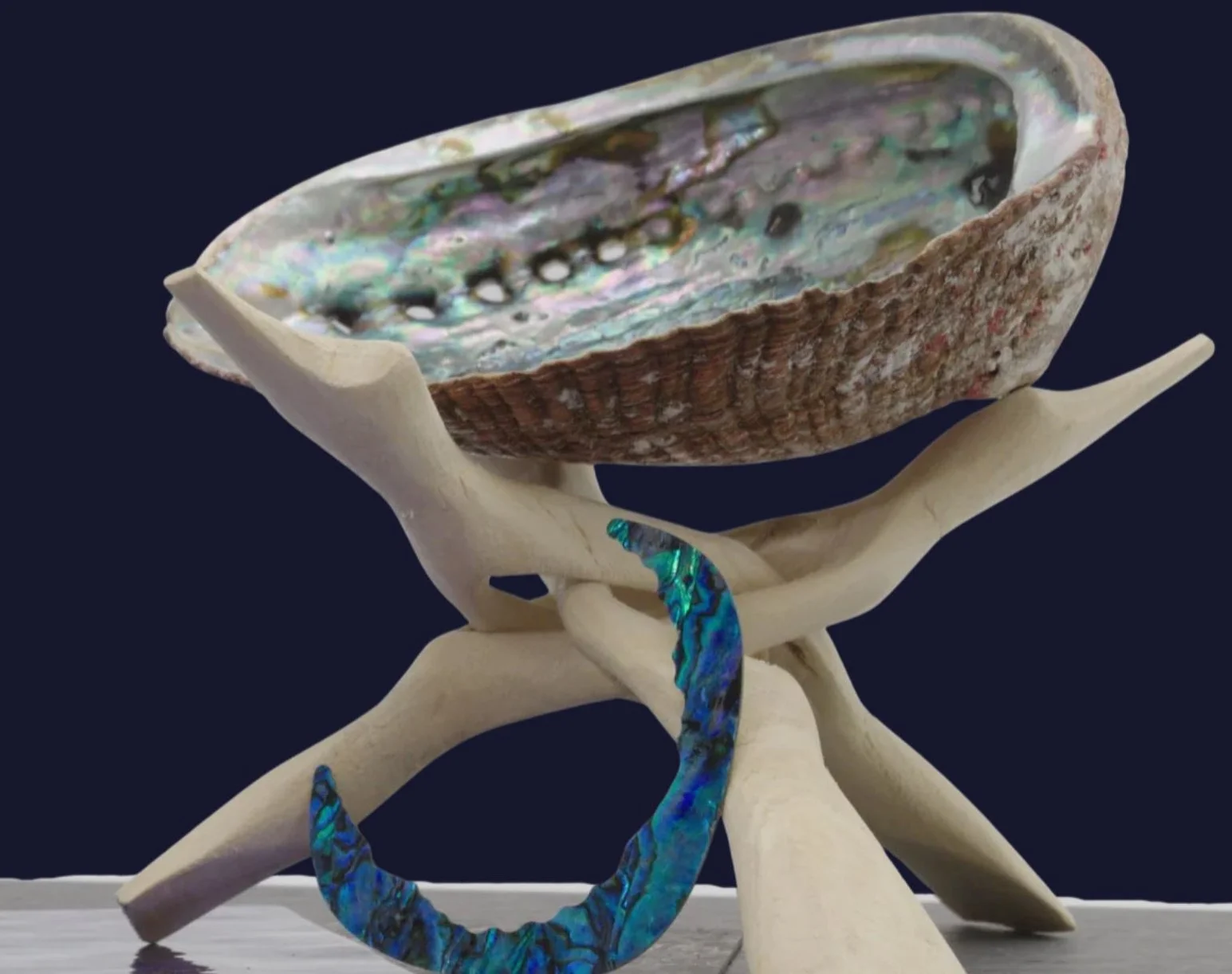

Inlay - Abalone
With a more premium product, Abyss team is able to source more premium materials. New Zealand Abalone, a natural product from a Snail like ocean creature, radiates elegance. A tasteful dash of blue or violet will pop off your headphone stand.

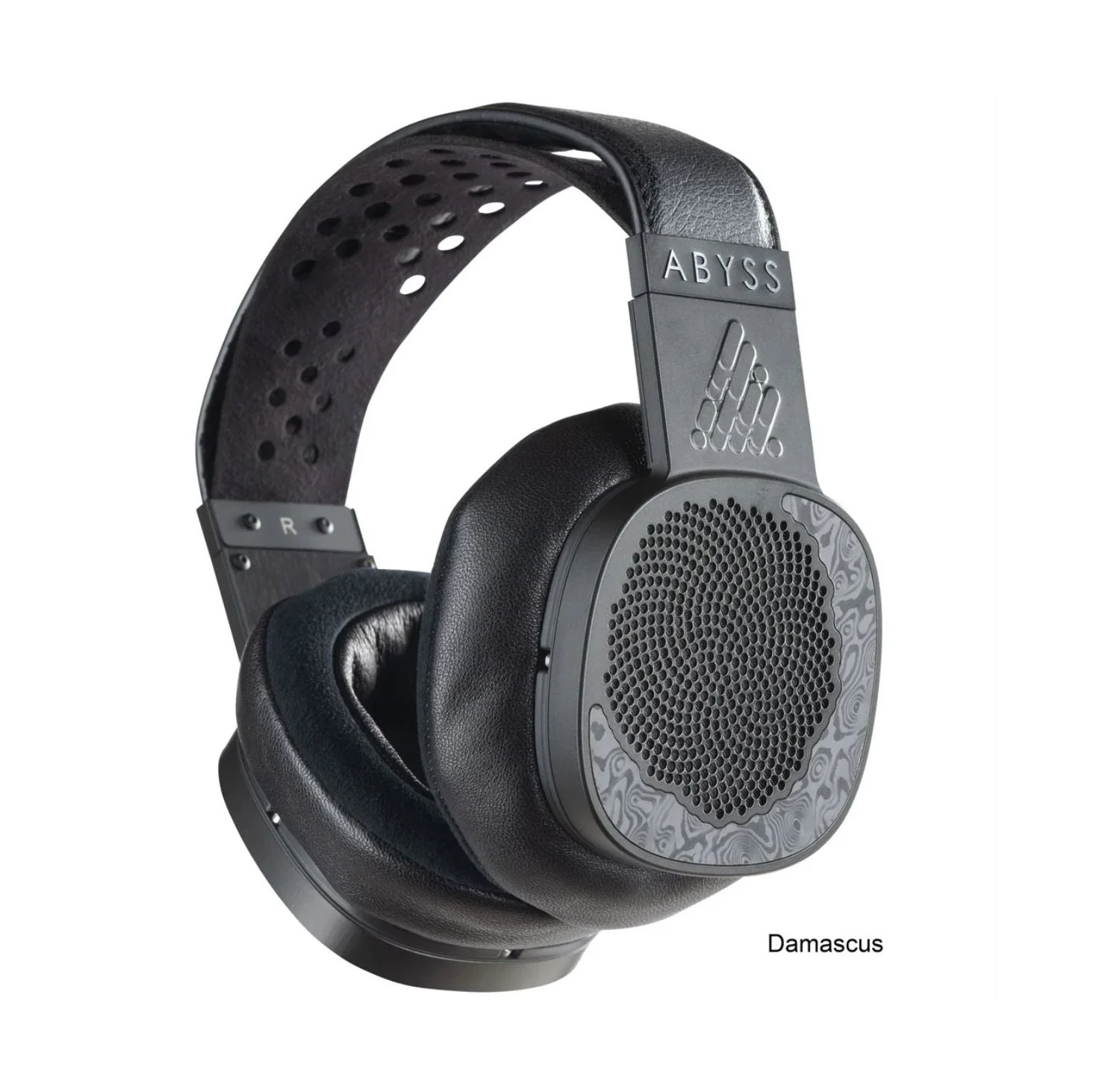

Inlay-Damascus
The art of the folded samurai blade married to the modern miracle that is carbon fiber. Two exquisite Damascus forged carbon fiber inlays. For a more reserved look, the 600 layered Damascus forged in black, and for a hint of shimmer, the 300 layered Gold forged.
Comfort -

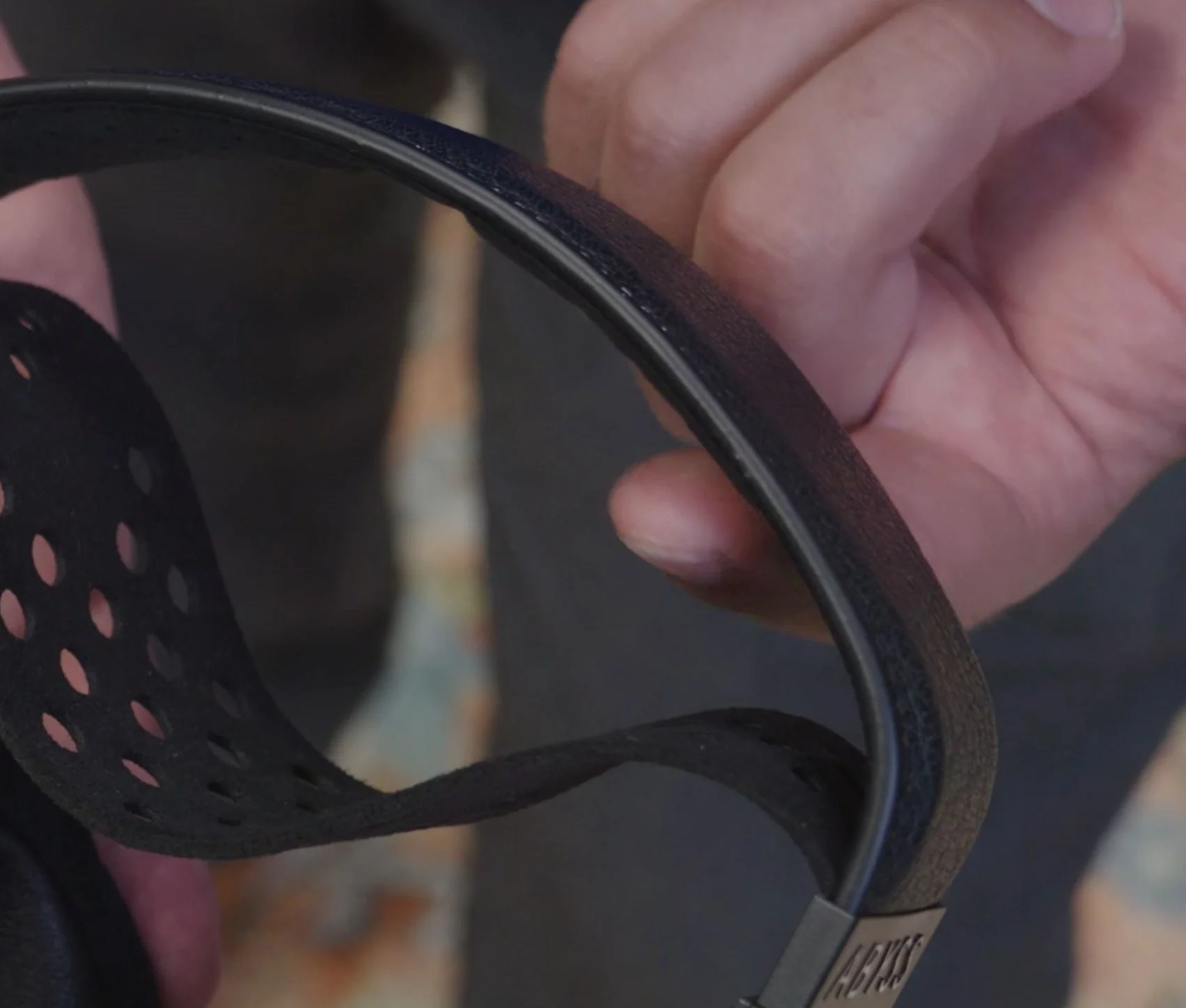

Sling Headband
The final piece to the universal fitting headphone : The Sling Headband. While not new to the industry, Abyss’s has the largest contacts points for maximum durability, with a custom designed Japanese fabric material optimized for skin to skin contact as well as hair stability. These headphones will disappear on your head.

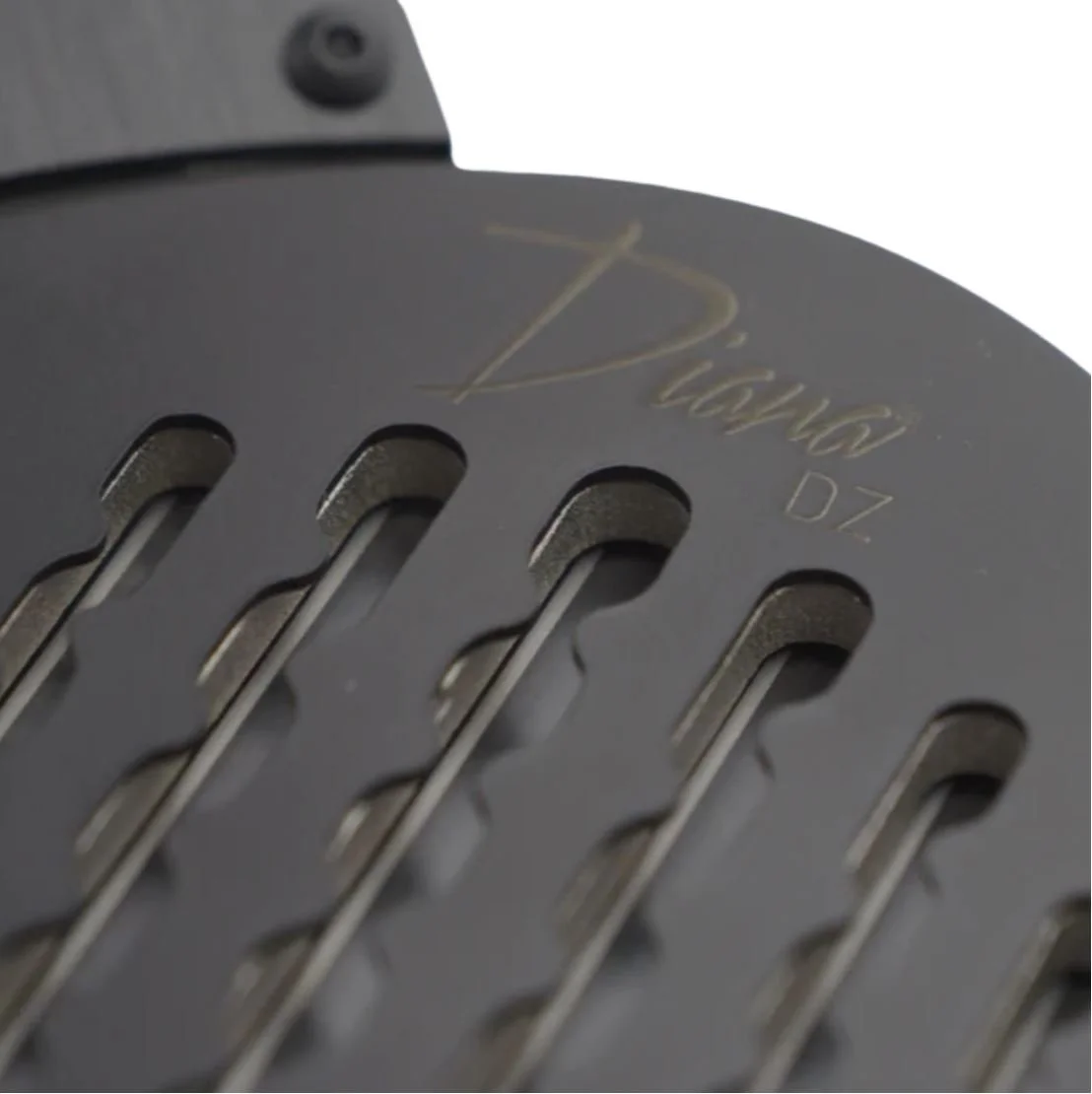

NEW Diana DZ Driver

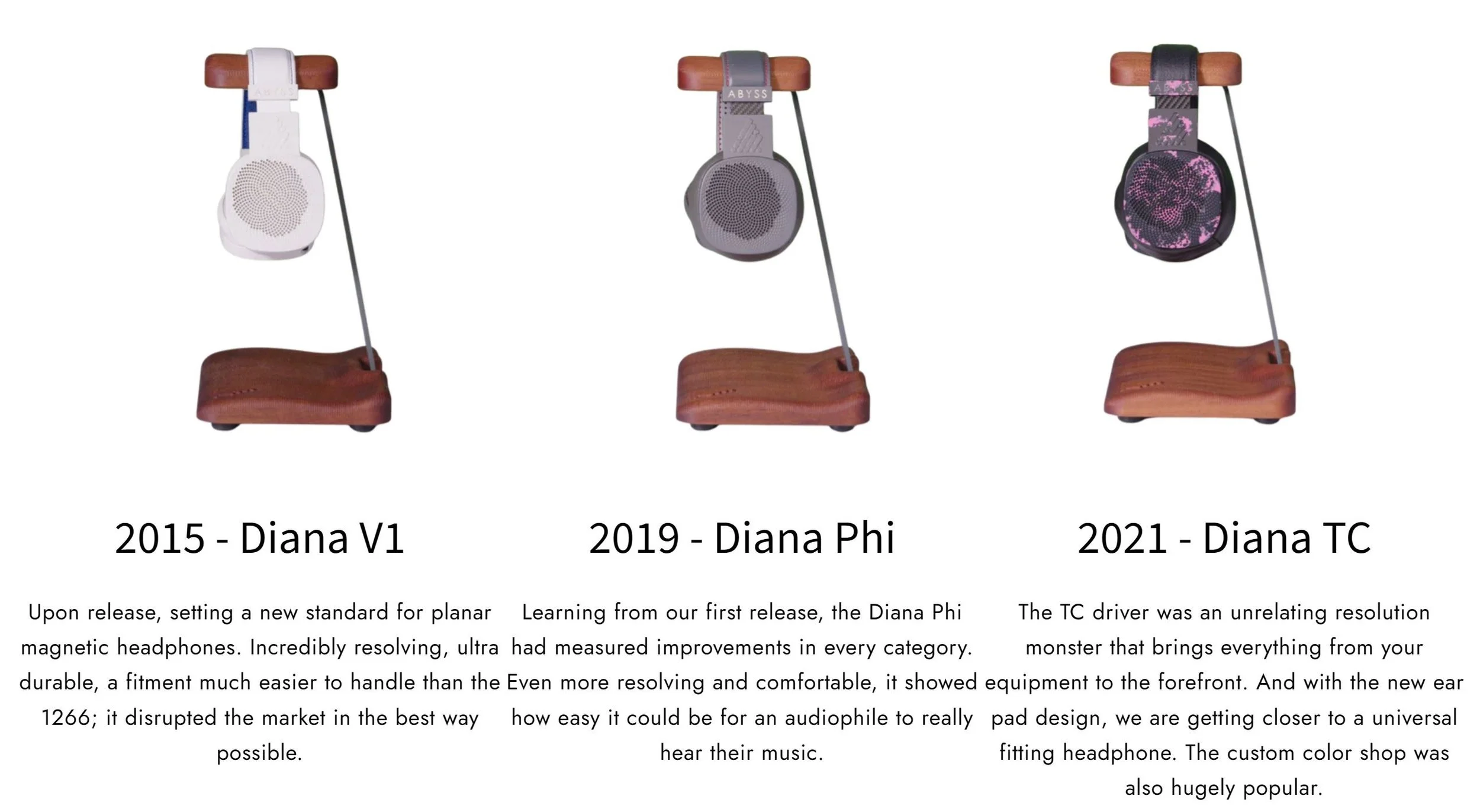

Each step from V1 to Phi to TC Drivers saw a marked increase in resolution. With the DZ we take that resolution, and tweak it into a tune that is more musical and pleasing than anything we have made before. Scales perfectly with higher end equipment, this truly is an immersive experience unique to Abyss.
STANDARD package :
- Diana DZ headphone

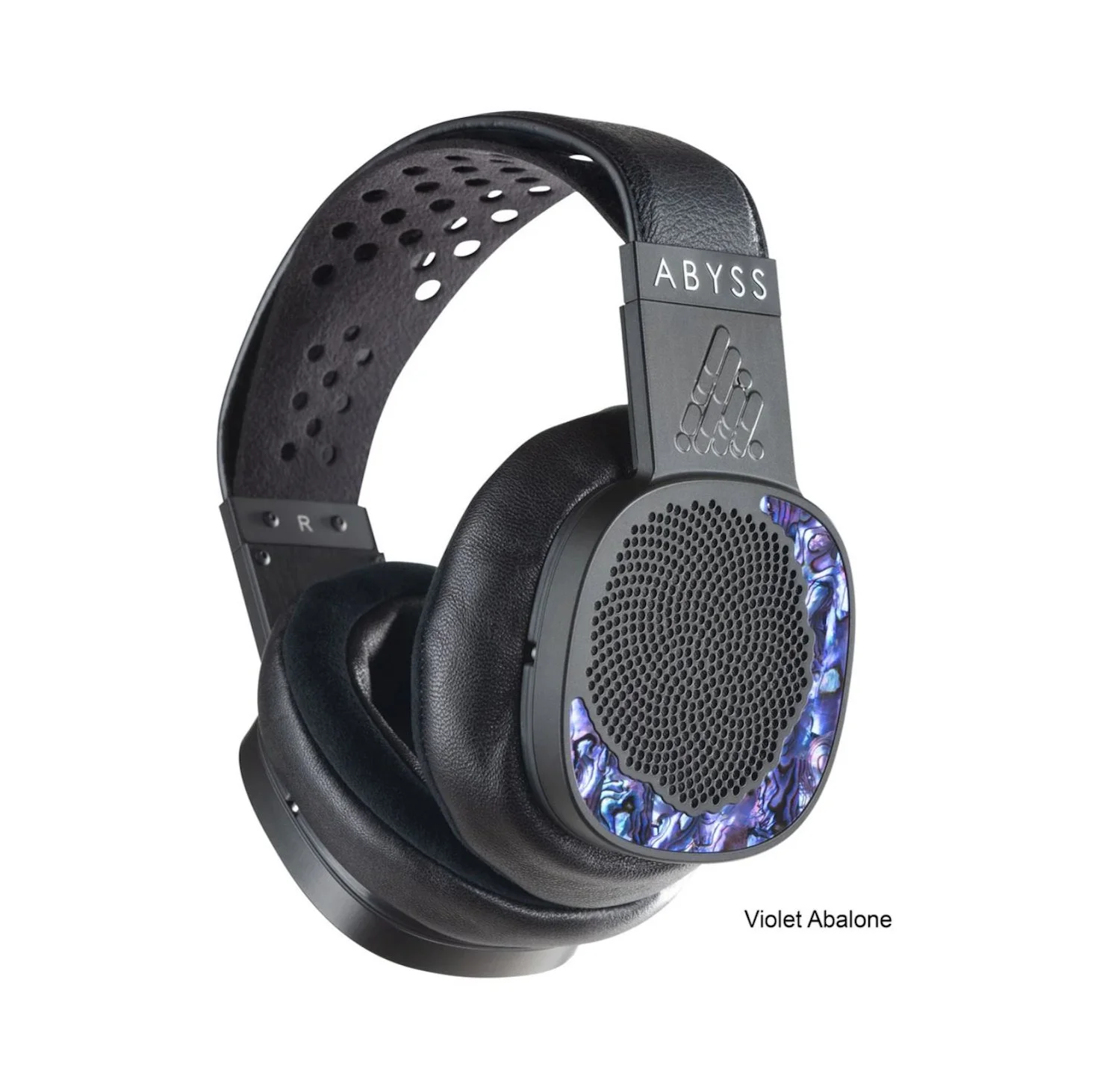

- Colors Violet Abalone, Gold Forged, or Damascus Forged
- Cable by JPS Labs, standard length 1.5 meter/ 5 FT, with choice of 3.5 mm, 1/4” (6.3 mm),4 pin XLR, or 4.4 mm balanced plug.
(Longer lengths add +0.5 m $50)
- ABYSS branded hard protective case keeps Diana safe
COMPLETE package :
- Diana DZ headphone
- Colors Violet Abalone, Gold Forged, or Damascus Forged
- Upgraded JPS Labs Superconductor HP balanced cable set,1.8 meter/ 6.6 FT, choice 1/4” (6.3 mm), 4 pin XLR, or 4.4 mm balanced plug
(Longer lengths add +2 FT/ 0.6 m $200)
- ABYSS branded hard protective case keeps Diana safe
Specifications :
Headphone Type : Open-back, over-ear, wired headphone
Speaker Type : 63 mm planar magnetic drivers – DZ-tuned (ABYSS patented)
Impedance : 50 ohms
Sensitivity : 92 dB/mW
Frequency Response : 5 Hz – 65 kHz
Total Harmonic Distortion : ~0.05% THD (average)
Weight : 379 g (with stock ear pads) / 309 g (without)
Frame Material : Aircraft-grade aluminum with exotic inlays
Finish : Hybrid ceramic/polymer blend ratioed for high durability
Inlay Options : New Zealand abalone or carbon fiber Damascus, available in various colors
Headband : Premium lambskin leather with aluminum magnetic adjustment slider and SLING suspension strap
Ear Pads :‘Pillow top’ hybrid pads in lambskin leather with vegan Ultrasuede contact surface; magnetically removable
Cable : 1.5 m stock ABYSS Diana OFC (oxygen-free copper) cable
Cable Options : Connectors: 3.5 mm, 6.3 mm (1/4"), 4-pin XLR, or 4.4 mm balanced. Lengths: 1.5–3.0 m

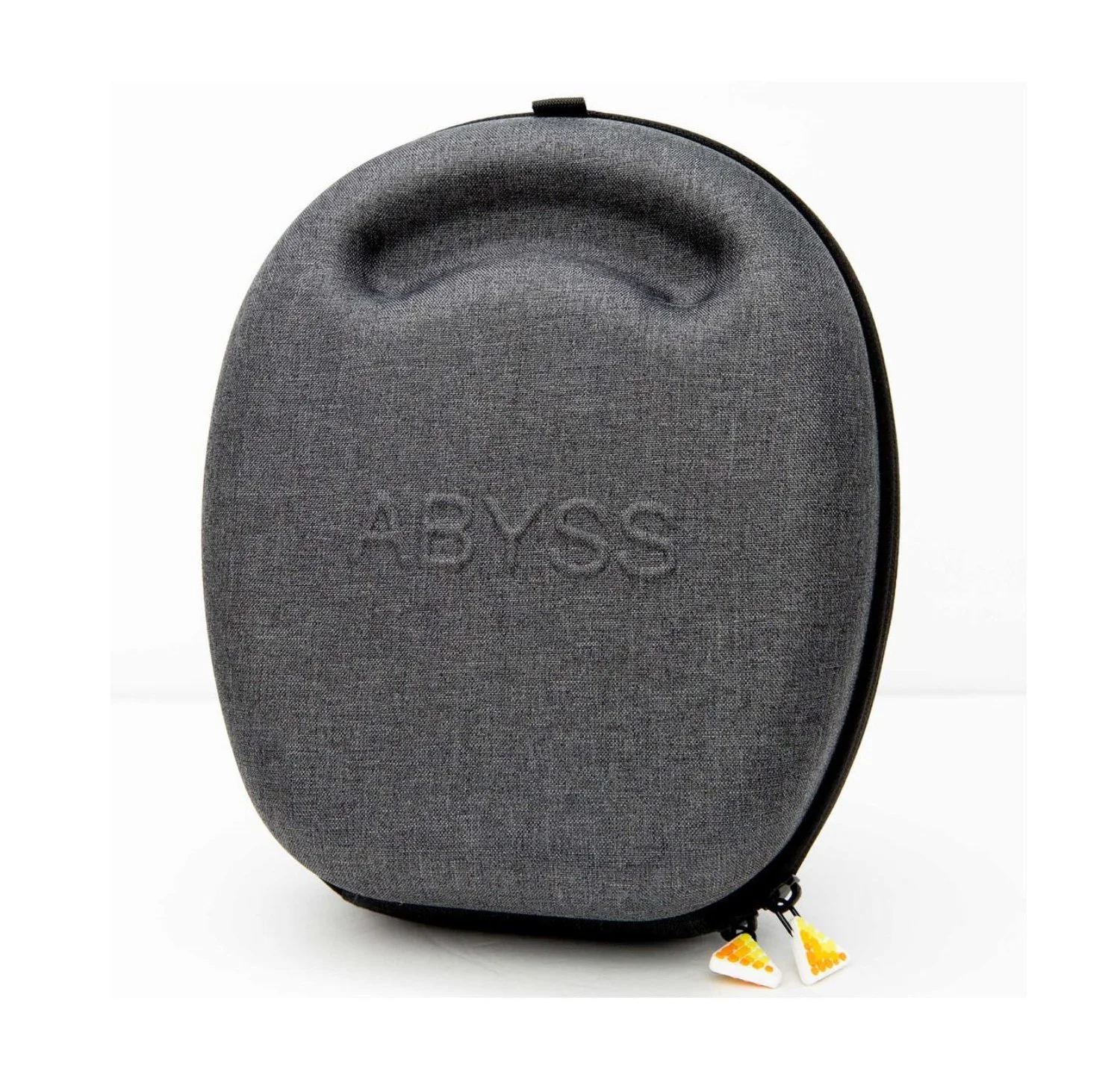

Case : Heather grey custom ABYSS hard-shell carry case with velvet-lined interior
Upgrade Options : Compatible with all DIANA series ear pads and cables; Superconductor HP cable optional
Warranty : 10-year private warranty (industry leading)
Recommended Power : 1 W minimum, 1.5–3 W optimal
Made In USA – fully engineered, designed, manufactured, and assembled in-house
Vegan Friendly Optional (Ultrasuede ear pads and headband available)
