Upon its release (Feb. 2024), IMMANIS quickly caught the attention of headphone aficionados everywhere. Superlatives began appearing as IMMANIS was making the rounds at the various audio shows. The praise and appreciation was further spread as bloggers began posting their impressions of this revolutionary development in headphone engineering.
It only takes a few minutes of listening to discover why this triple-ribbon design is so talked about. The soundstage is enormous. It’s fast. It’s transparent. It’s lively and exciting.
Regardless of the size and calibre of your headphone collection, if it doesn’t include IMMANIS, you are missing a significant chapter in the book of TOTL headphones. We encourage you to arrange for an audition of this rare creation.

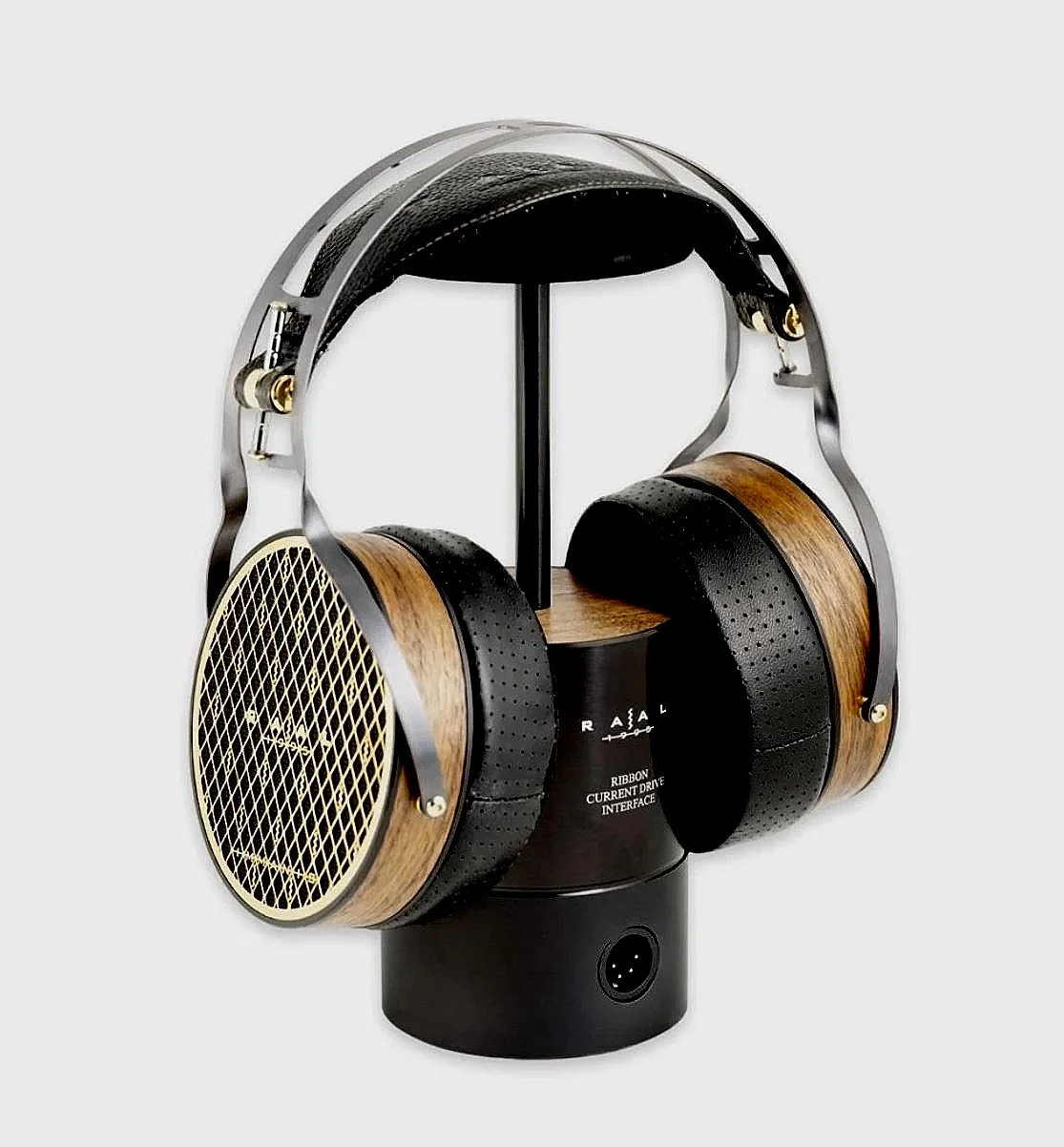

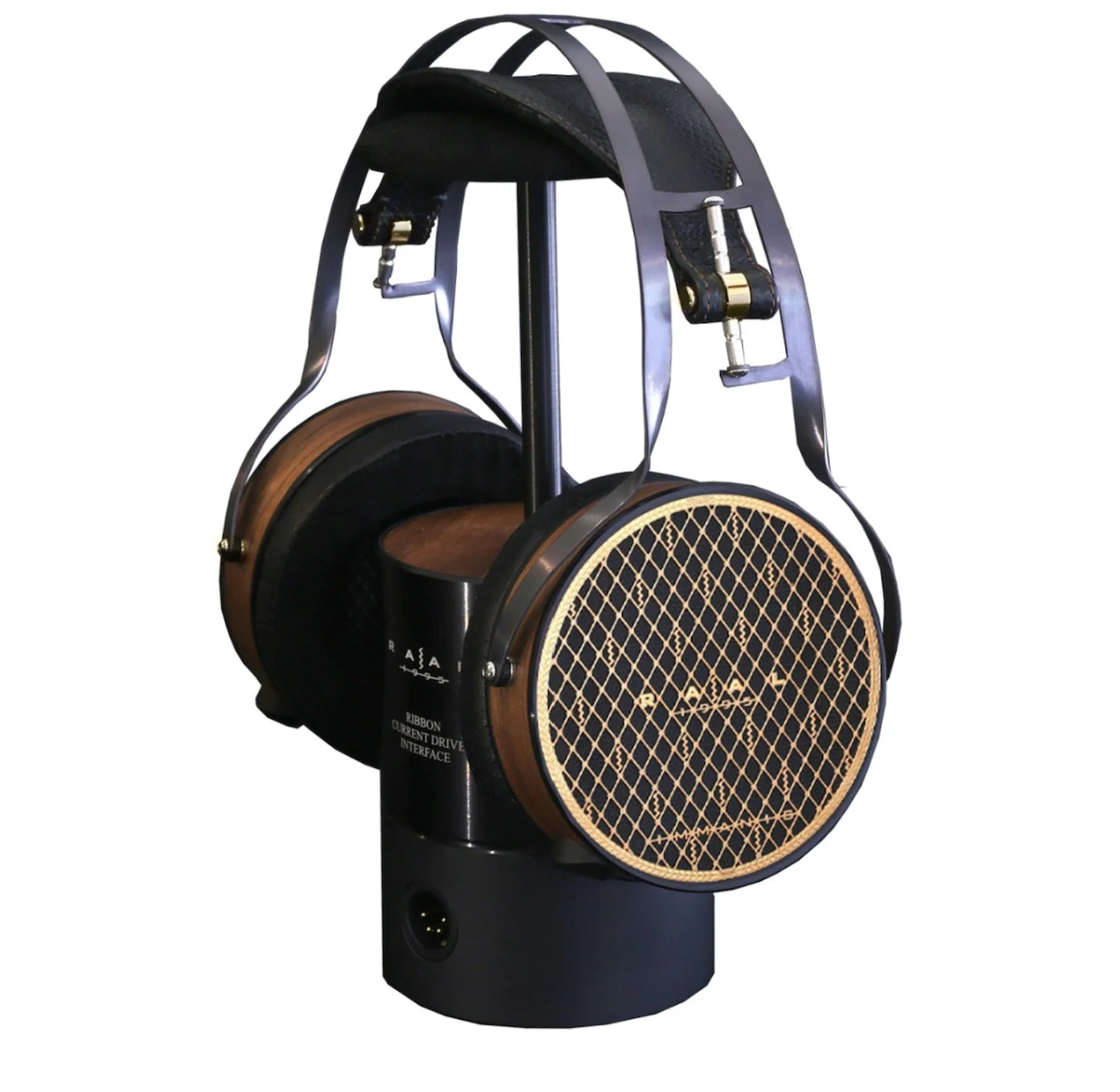

Headphones: IMMANIS (triple-ribbon)
Ribbon Current-Drive Interface / Stand: RCD Interface 32 Ohm (8 Ohm & Viva by request)
Cable (Amplifier to RCD Interface): RCD-XLR (XLR4 to XLR4) 1.5m
Cable (Headphones to RCD Interface): STAR-8 MkII Pure Silver 1.8m
Case: Anodized Aluminum / Plush Lined
Configuration
Complimentary Tuned Triple Ribbon
Ribbon Type
Corrugated Pure Aluminum (True-Ribbon) with Viscodamp™ “Silent Metal” Viscosity Dampening
Surface Area
25.2 cm² (3.9 in²)
Excursion
+/- 4mm (0.157 in)
Maximum SPL
118dB
Impedance
0.057Ω
Impediance with Specialized HP Cable
0.29Ω
Note: Cable Connector
Female XLR 4-pin. Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a, Jotunheim R).
Body Material
Glass Fiber Composite, Aluminium
Finish
Anodizing, Hard Wax on American Walnut Veneer

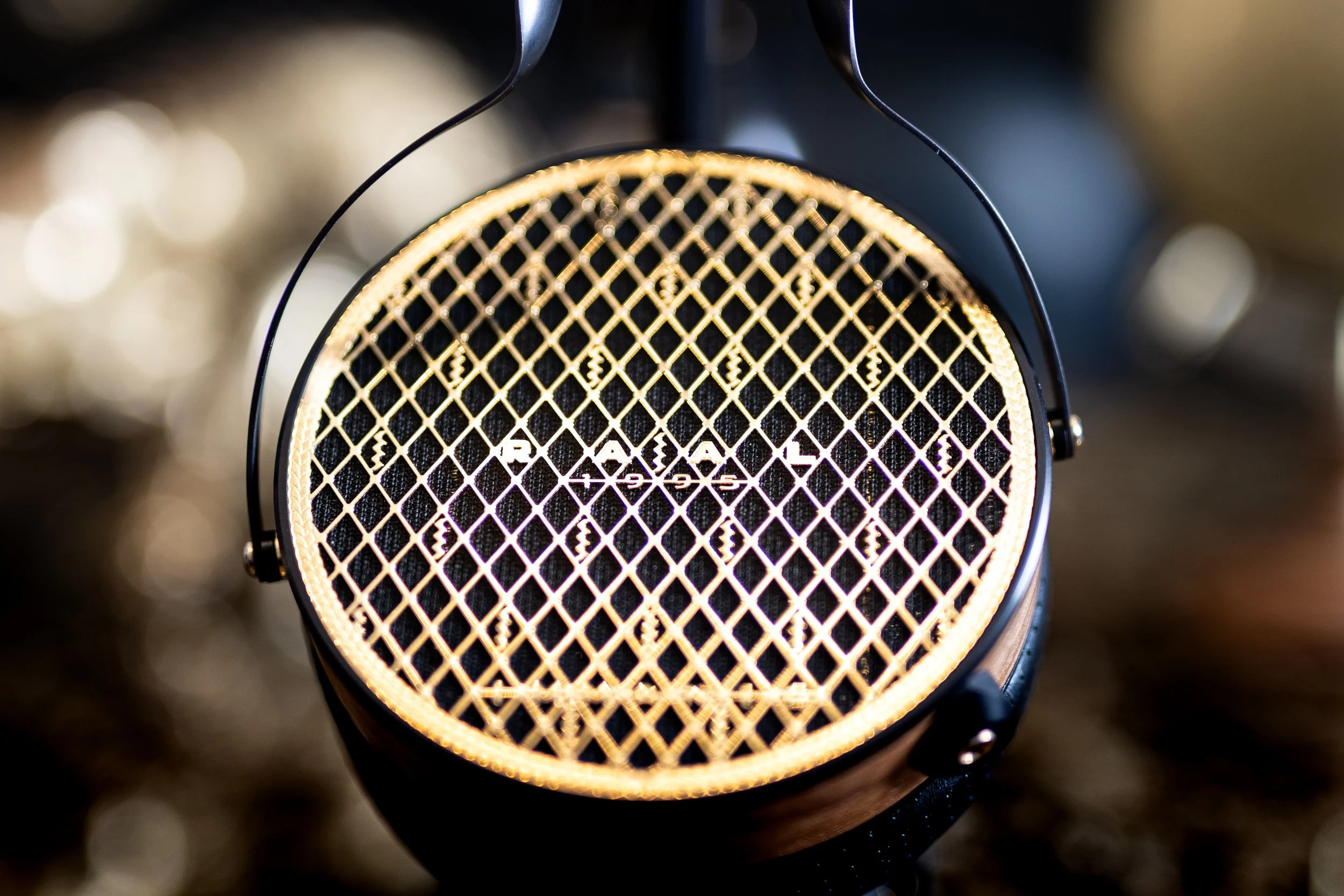

Grille
Gold-plated 3-phase Etched Stainless Steel
Headspring
Brushed Stainless Steel with TIAlN (Titanium Aluminium Nitride) Hard Coating
Polished Stainless Steel by Special Request
Headband
Soft Cushion Band, underside in Diamond Pattern Cushion Stitched Suede
Height Adjustment
Gold-Plated 5-Position Click-Stop

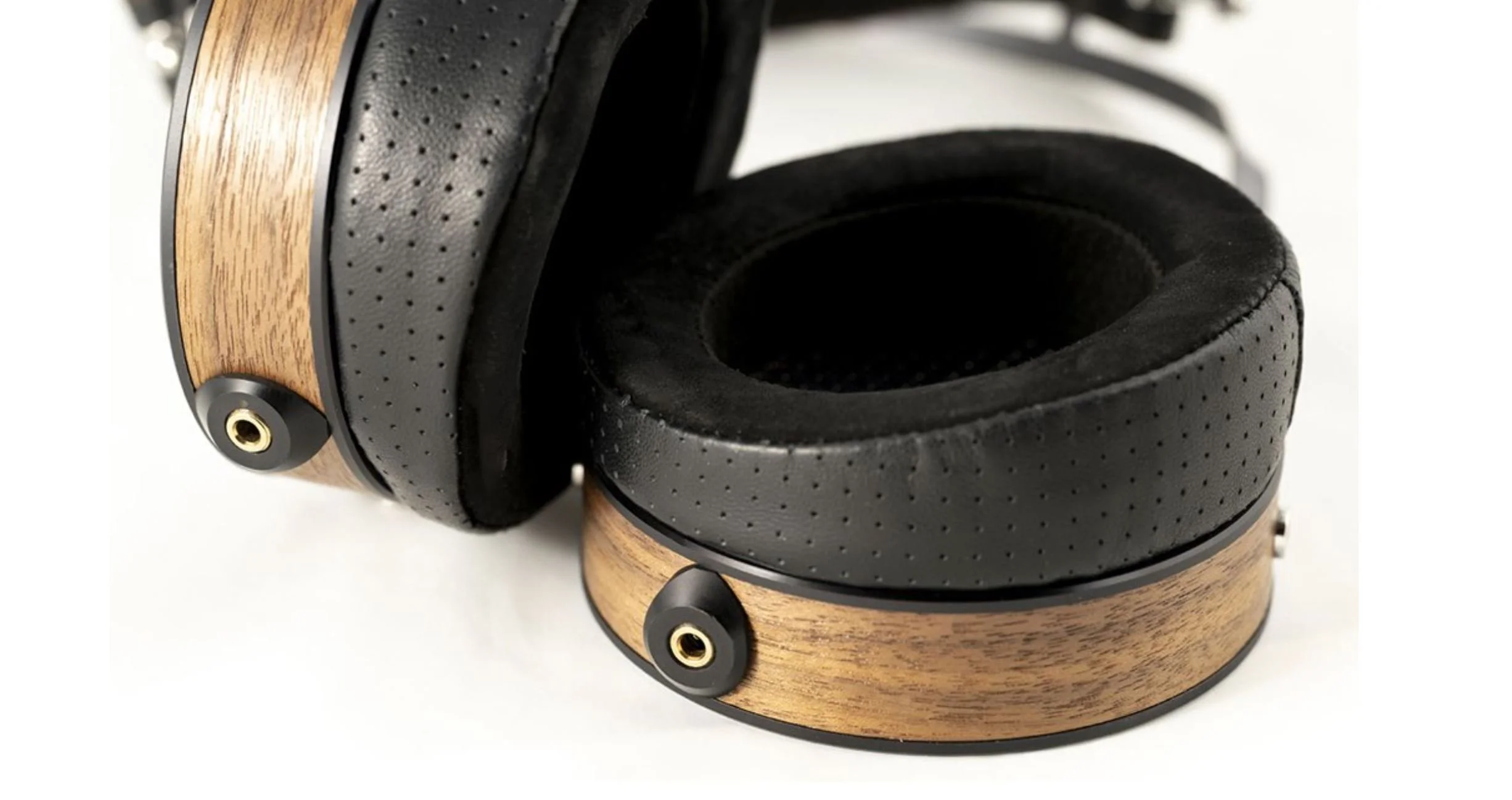

Earpads
Face: Lambs Leather Suede, Fill: Memory Foam, Inside: Textile, Outside: Perforated Sheepskin
Input Connectors
High-Current Gold Plated 3.5 mm TRRS Female Connectors
Weight without a Cable
626g

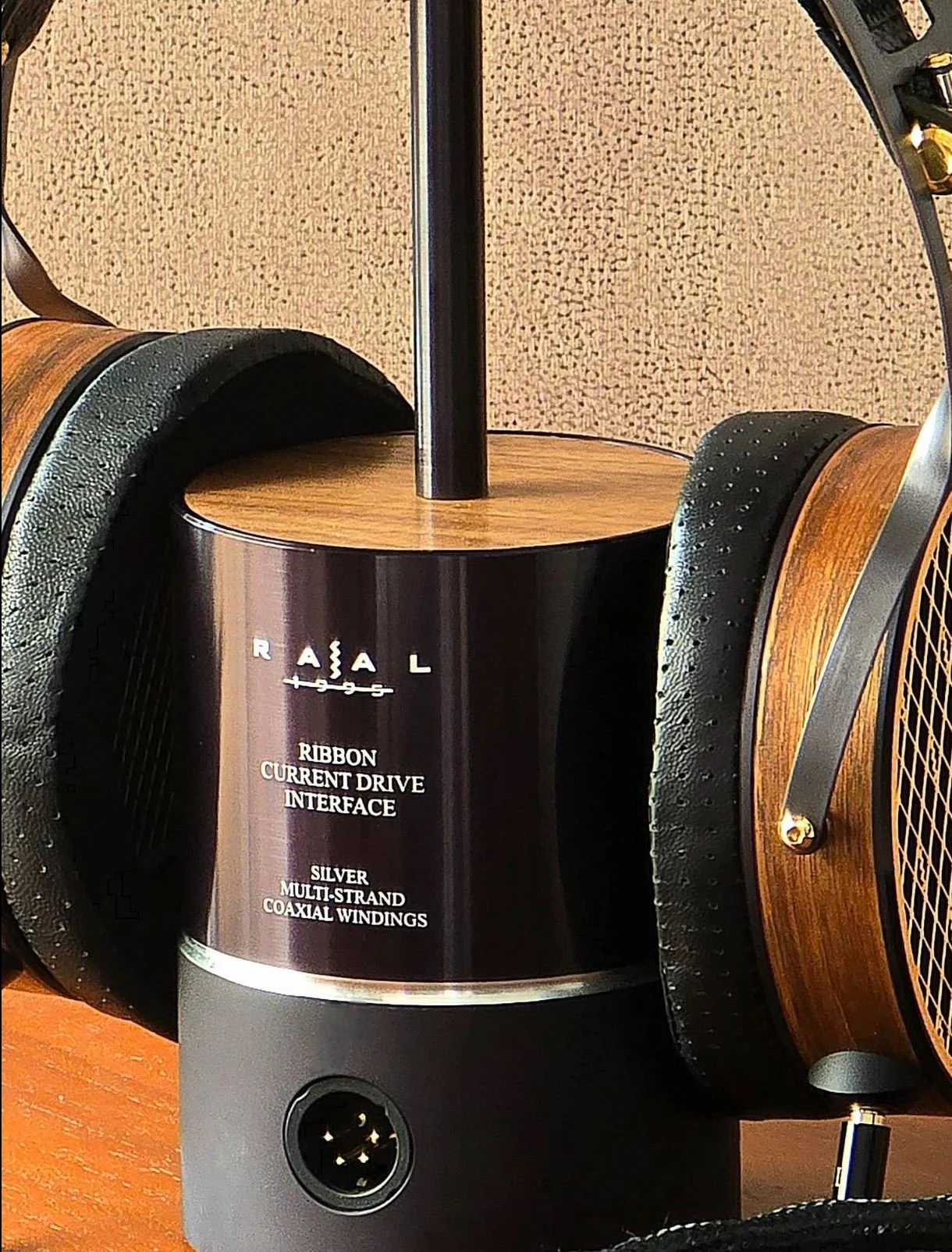

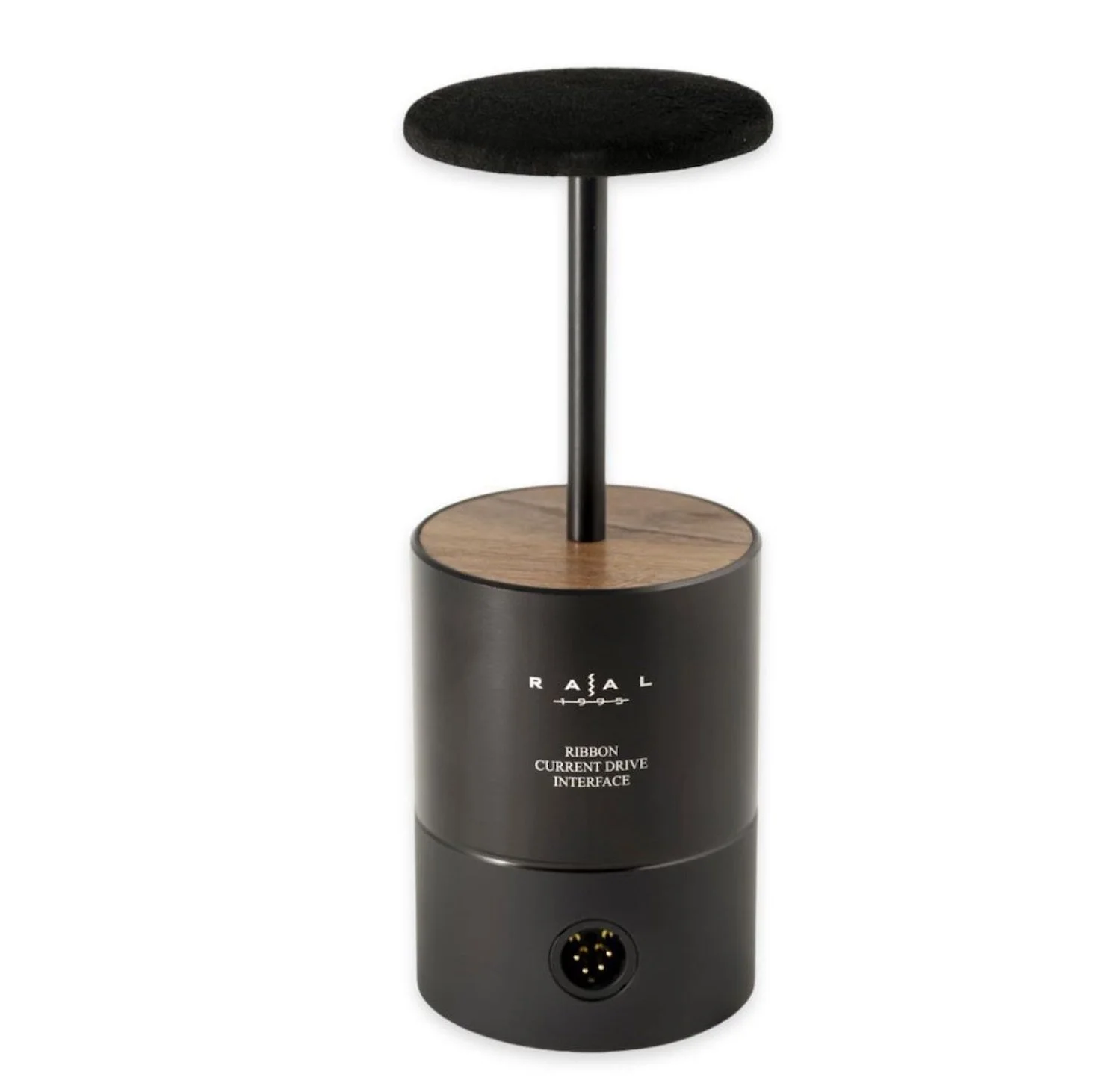

Ribbon current-drive interface
Purpose
Converts low impedance of Headphones + Cable (0.29Ω) to impedance usable to Amplifiers (32Ω and 8Ω)
Configuration
Toroidal Transformer + Specialized Headphone Cable (STAR-8, STAR-8 MkII)
Drive Type
Converts Voltage-Drive from Amplifier to Current-Drive for Ribbon
Supported Amplifier Type
Voltage-Drive Amplifiers with low Internal Output Impedance and DC-offset less than 10mV
Impedance that loads the Amplifier
32Ω Nominal (8Ω & Viva by special order)
Recommended Amp Power, RCDI-32
Headphone Amp of 2-6W or Loudspeaker Amp of 8-25W at 8Ω
Recommended Amp Power, RCDI-8
Loudspeaker Amp of 2-6W at 8Ω (SET or similar low-power Amps for Loudspeakers)
