MAGNA is not a detuned, compromised version of IMMANIS.
MAGNA (dual-ribbon) is ideal for those seeking authenticity of timbre, scale & proportionality in mid-size and smaller ensembles, regardless of genre. String quartets, piano trios, singer/songwriter, classic jazz and blues, all presented with stunning clarity of space, while kicking like a mule, when the music calls for it.
Light weight and comfortable for many hours of enjoyment, MAGNA does it all with uncompromising audio excellence.
Magna package set
Headphones: MAGNA (dual-ribbon)

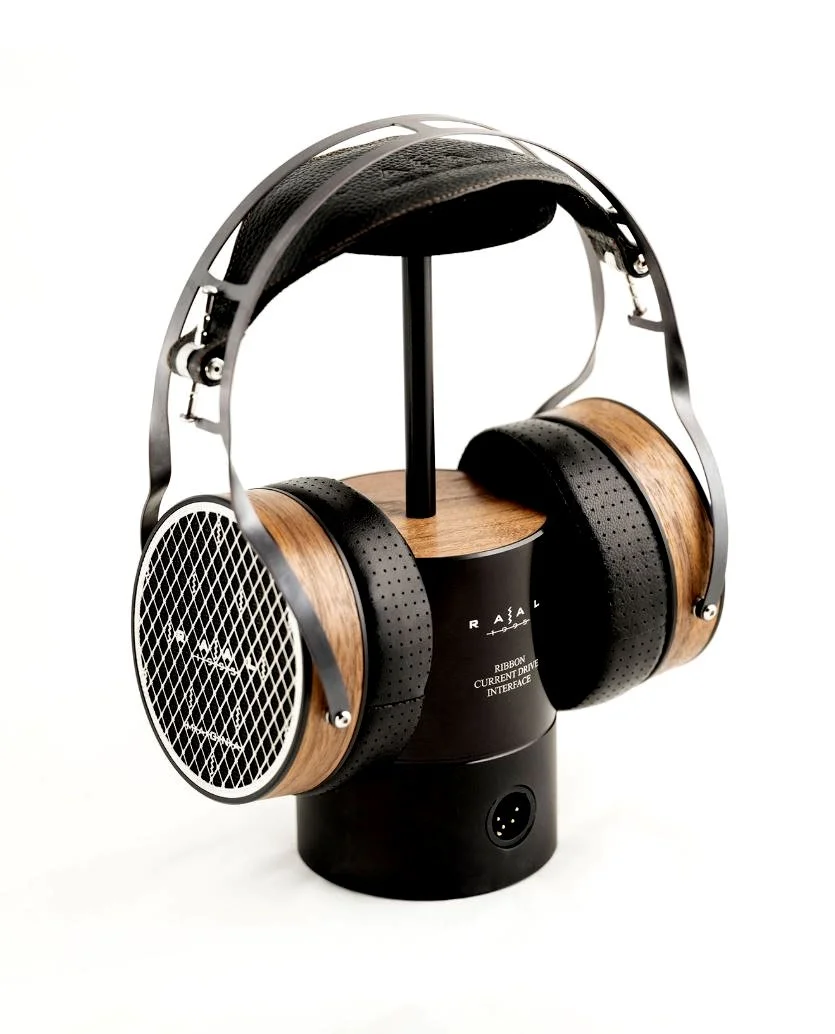

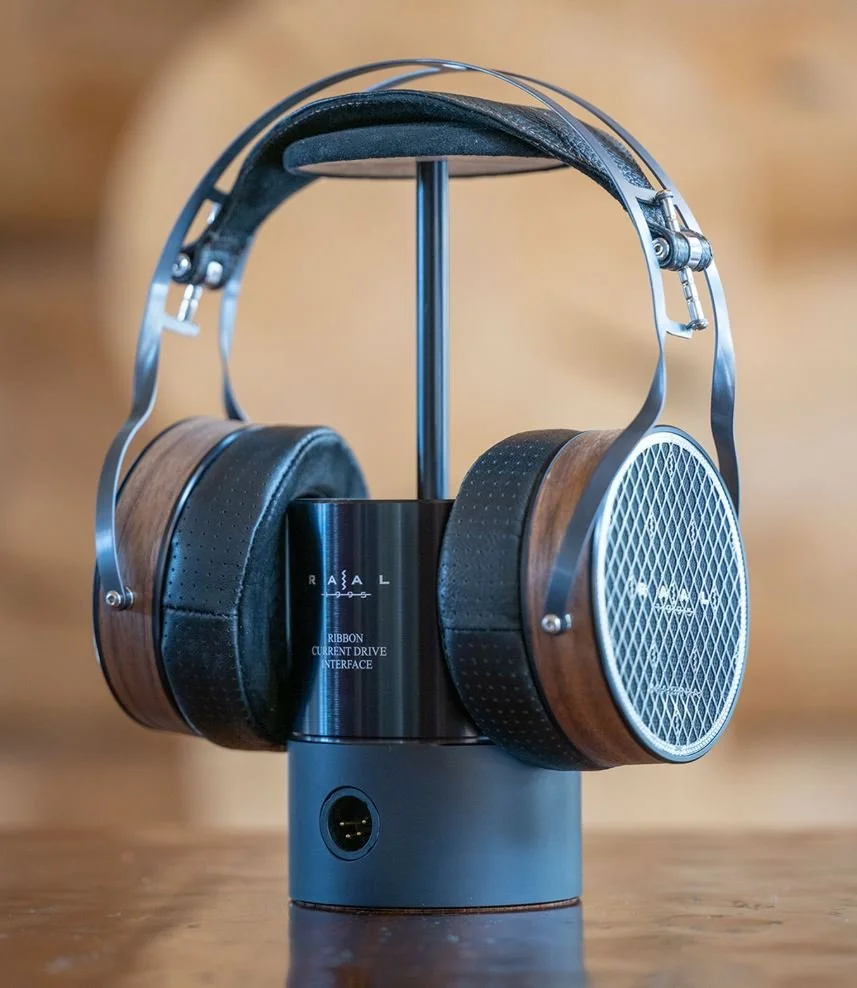

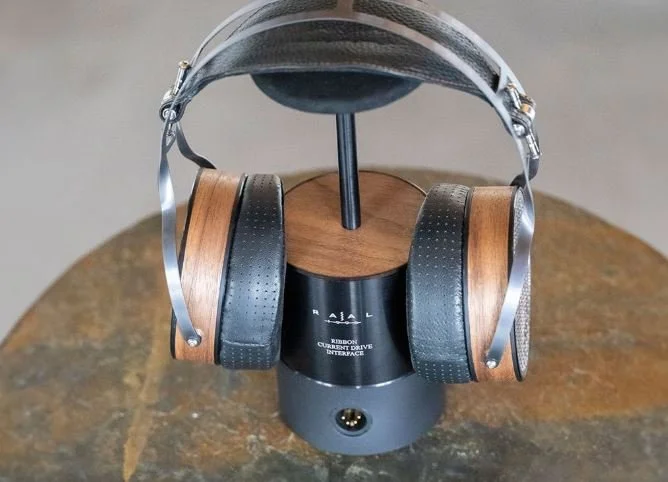

Ribbon Current-Drive Interface / Stand: RCD Interface 32 Ohm (8 Ohm & Viva by request)
Cable (Amplifier to RCD Interface): RCD-XLR (XLR4 to XLR4) 1.5m
Cable (Headphones to RCD Interface): Satis Copper 1.8m
Case: Waterproof Hard Molded Plastic / Foam Lined
Motor Specifications
Configuration : Complimentary Tuned Dual Ribbon
Ribbon Type : Corrugated Pure Aluminum (True-Ribbon) with Viscodamp™ “Silent Metal” Viscosity Dampening
Surface Area : 16.8 cm² (2.6 in²)
Excursion : +/- 4mm (0.157 in)
Maximum SPL :115dB
Impedance : 0.038Ω
Impedance with Specialized HP Cable : 0.27Ω
Note: Cable Connector : Female XLR 4-pin. Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a).

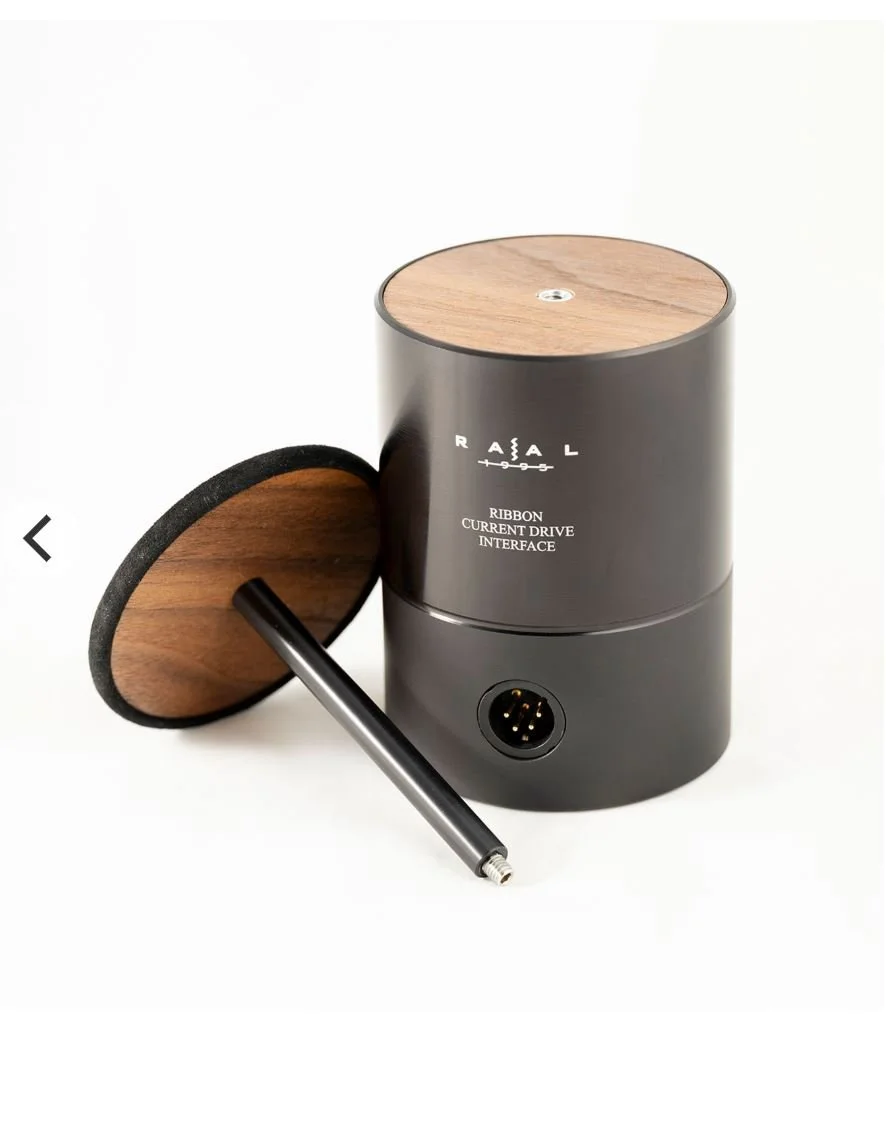

Ribbon Current-Drive Interface (RCDI-32, RCDI-8) Specifications
Purpose : Converts low impedance of Headphones + Cable (0.27Ω) to impedance usable to Amplifiers (32Ω and 8Ω)
Toroidal Transformer + Specialized Headphone Cable (SC2, S2 Satis, STAR-8, STAR-8 MkII)
Drive Type : Converts Voltage-Drive from Amplifier to Current-Drive for Ribbon
Supported Amplifier Type : Voltage-Drive amplifiers with low Internal Output Impedance and DC-offset less than 10mV
Impedance that loads the Amplifier : 32Ω Nominal (8Ω & Viva by special order)
Recommended Amp Power RCD1-32: Headphone Amp of 2-6W or Loudspeaker Amp of 8-25W at 8Ω
Recommended Amp Power, RCDI-8 : Loudspeaker Amp of 2-6W at 8Ω (SET or similar low-power Amps for Loudspeakers)
Headphone Body Specifications
