PERSEUS was created as a result of extensive experience in designing amplifiers that directly drive ribbon headphones and dates back to 2019.
That potential allowed SAEQ to create PERSEUS (giant slayer).
SAEQ was the first to manufacture amplifiers capable of directly driving ribbon headphones. Unlike the celebrated amp HSA-1b, here they have made the output for ribbon headphones more efficient avoiding the huge dissipation of the output stage.
PERSEUS was created as a consequence of the current need for amplifiers that have the ability to directly drive ribbon, planar and dynamic headphones. Practically three in one.
Its incredible agility and ease in driving all three types of headphones simply confuses listeners.
You can connect RAAL Magna, Susvara and Abyss 1266 to it at the same time, it continues to play clearly and transparently without any negative phenomena in the sound presentation. A powerful quasi-complementary type output stepper makes it insensitive to the type of loading. The entire performance is traditional with discrete elements. Additional detail is due to the stabilized power source, which makes the circuit resistant to variations in the mains voltage.
The double feedback that SAEQ traditionally apply manages to articulate fine sonic details that confuse you when you hear them in this price class of amplifiers. SAEQ team is sure that in addition to numerous audiophiles, PERSEUS will also be accepted by professionals who are involved in creating music tracks in studios and who are involved in post-production. Combined with the sparkling presentation of the ribbon headphones, PERSEUS also give professionals the opportunity to hear the incredible details of quality music productions and discover a number of mistakes in post production if they have been made.
It's sound is really somewhere between Morpheus smoothness and Hyperion's sparkle. Something definitely new. This class of amplifier requires high-class DACs and quality interconnect cables in order for its sound presentation to be in full glory.
Specifications :
Load Impedance headphones out - direct : 8- 600 ohms and on male XLR-4pins, 0,4 ohm (ribbon headphone out)
Load Impedance speakers out : none
Output Power (one channel driven) : 8,5W/8 ohms, 5W/16 ohms, 2.5W/32ohm, 1,25W/64ohms, 0,6W/120 ohms, 0,3W/300 ohms, 0,15W/600 ohms at 1khz/sine / both channels driving. On direct ribbon out : 3WRMS
Frequency Response : 2V RMS 20hz – 50kHz (+/-0,2dB)
Power Bandwidth : 100kHz (-1db) at 2W (4-600 ohm)
Distortion : < 0,05% at 1khz
Signal to Noise Ratio : Better than 92dB
Input Impedance : 50kΩ
Input Sensitivity for full OUT : 1V peak to peak at 1 kHz

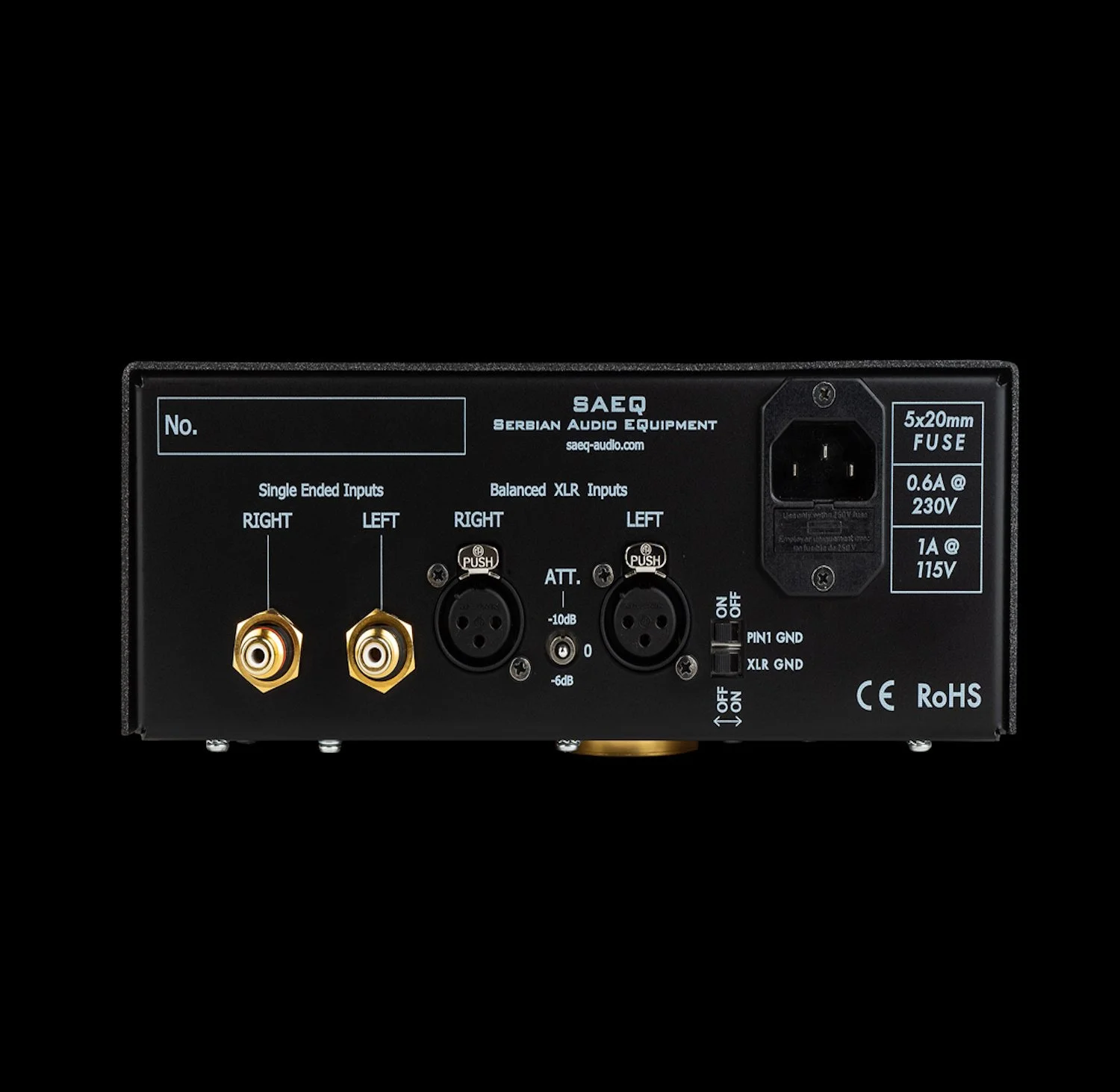

Input Connections : INPUT 1 RCA Single-Ended, INPUT 2 XLR 3-pin Balanced (female) with attenuation -6 and -10dB

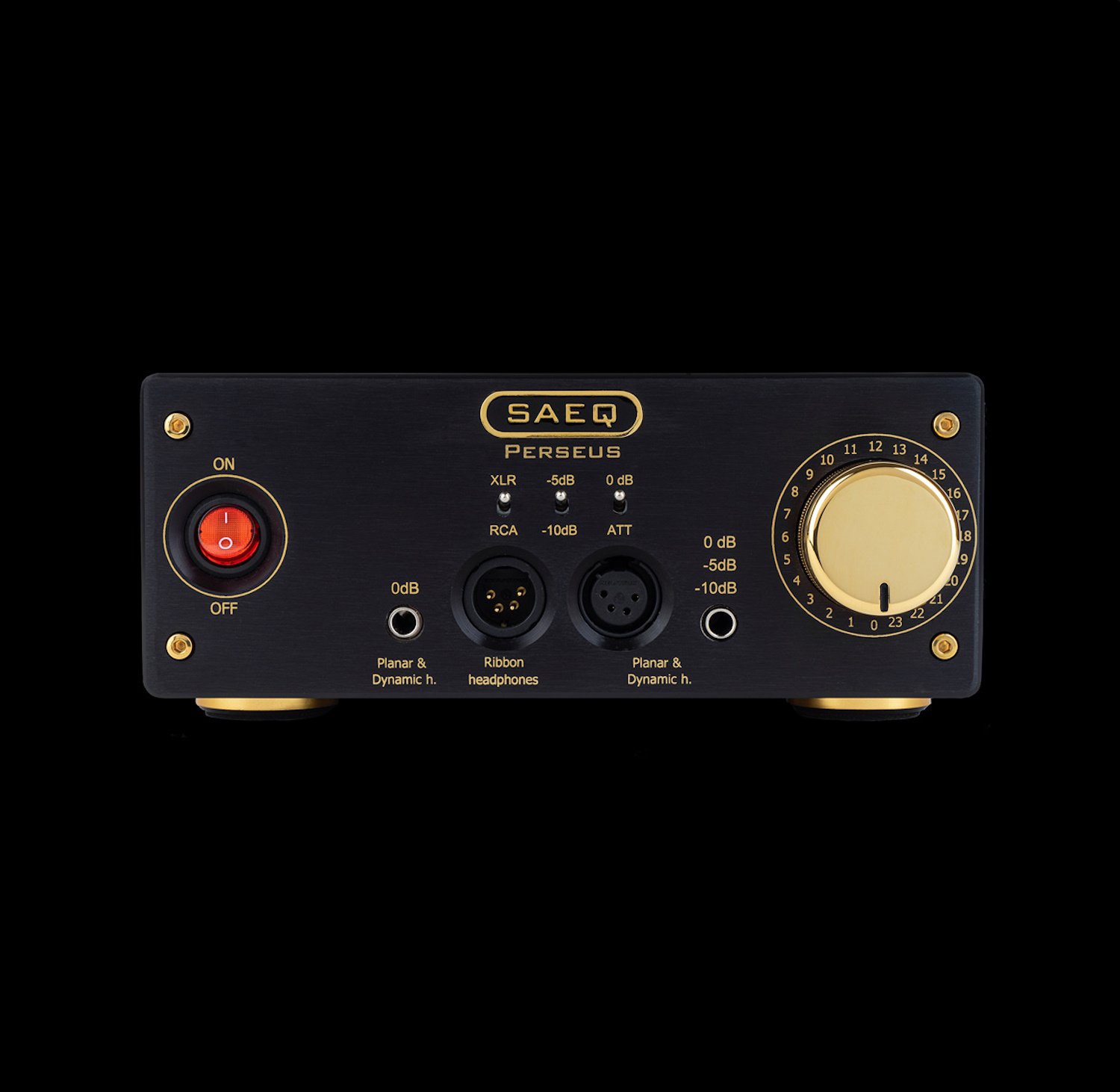

Output Connections : XLR 4 pin male for direct ribbon headphone output, XLR 4 pin female for Planar & Dynamic headphones
6.3mm stereo jack (Planar & Dynamic headphones) 8 - 600Ω
Max Power Consumption : 50W, without signal 15W
Workng voltage : 110V/220VAC (selector switch) or 100V (requires internal connection)
Dimensions : Height 90mm, Width 218mm, Deep 320mm (3.54 x 8.58 x 12.60 inches)
Weight : 6,5kg (14 pounds)
NOTE-ATTENTION
The output stage of the amplifier is without short-circuit protection except for the ribbon headphone output (male XLR 4 pins)
